Manta W+ Microscope
Engineered for high-performance inspection across all fiber connector types—from LC to MPO and beyond.
Award Winner

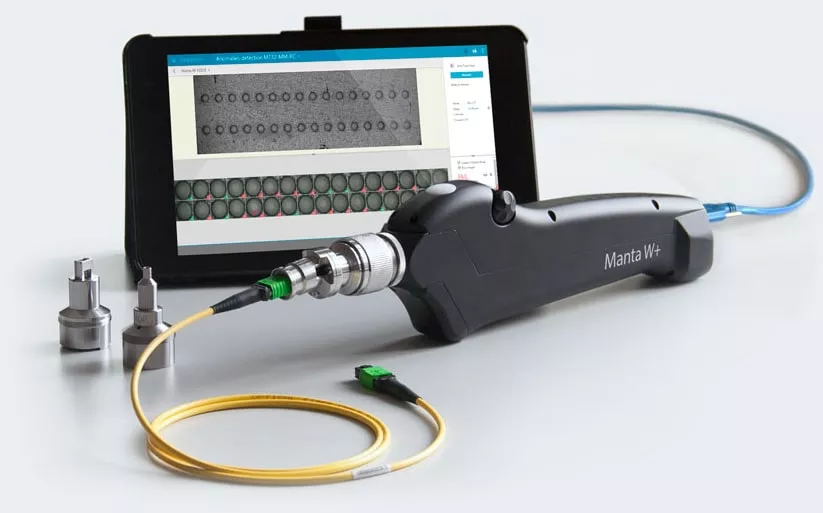

Manta W+ is a revolutionary portable microscope designed for inspection of all types of single and multi-fiber optical connectors, patch cords and bulkhead, included but not limited to: MT, MPO, SN-MT, MMC, LC, FC, SC, CS®, SN®, MDC, E2000™, MXC, PRIZM, QSFP, ARINC, MIL-38999, ODC®, Q-ODC®, SMA, High-power SMA, Avim, mini-Avim and more.
Featuring resolution of a benchtop microscope, the probe gives the possibility to check multi-fiber, SMA and single fiber connectors in the field. The whole MTP®/MPO connector is tested in just one scan — as fast as 2 seconds*!
Manta W+ can be used for visual inspection of the connector end face for scratches, defects and contamination, as well as for automatic Pass/Fail testing based on IEC standards. Part number for ordering: SMX-Manta-W+.

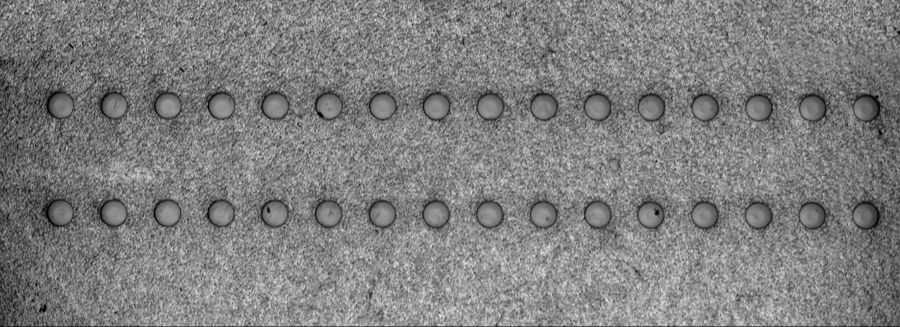

for MT12 ferrule
Features
1
Large Field of View
2
Detailed high-resolution picture
3
Extremely fast inspection
4
Wide variety of tips
5
Extended working distance
6
Pass/Fail LED indicator
Large field of view (4.1 × 3.0 mm)
Inspect entire connector in one scan.
Test MTP®/MPO connectors with up to 72 fibers in just one scan, inspect entire ferrule surface including guide holes if needed. Check the whole SMA connector endface in one shot.
Technology Specifications
Field of view | 4.1 × 3.0 mm |
Defect size detection | 0.75 µm |
Effective resolution | 1.8 µm |
Magnification | 260× |
Focus | auto |
Measurement time The indicated values do not include autofocusing time. | 2.1 sec for MT12,
2.3 sec for MT16,
4 sec for MT24,
7.7 sec for MT72.
|
Light source | royal blue LED, 447.5 nm |
Camera type | digital, USB3.0 |
Sensor type | monochrome, 4096 × 3000, 1’’ CMOS |
Live image | 4096 × 3000, 15 fps full resolution |
Power source | USB 3.0 port of PC |
Cable | USB 3.0, detachable |
Dimensions (H × W × L) | 77 × 28 × 249 mm (3 × 1.1 × 9.8 inches) |
Weight | 491 g (1.08 lbs) |
Housing Material | aluminum alloy |
Barrel Material | stainless steel |
Operating Temperature | +5 to +35°C |
Compatible with | desktop PC, laptop, tablet |
Sample Images

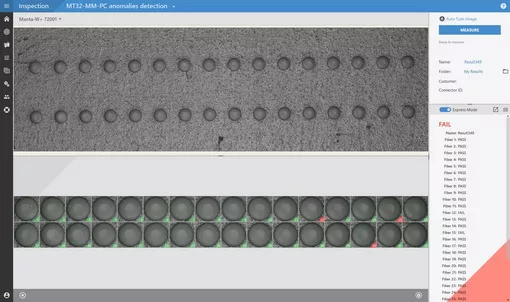

Test result for a 32-fiber MPO connector (based on IEC 61300-3-35 standard)

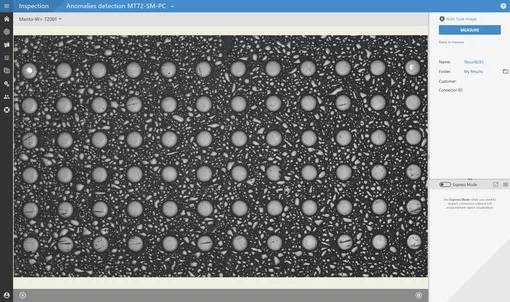

Live view of a 72-fiber MPO connector
Express test result for a 72-fiber MPO connector

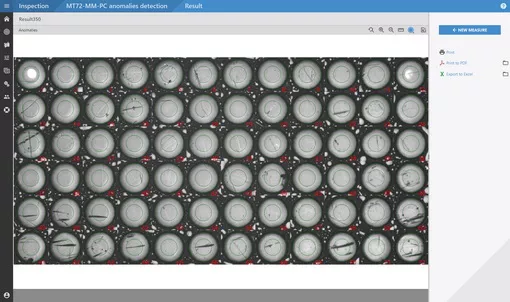

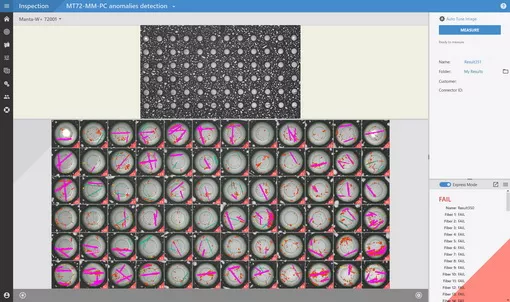

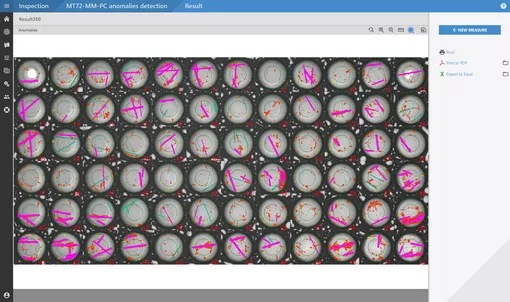

Test result for a 72-fiber MPO connector with highlighted anomalies
Test result for a 72-fiber MPO connector without anomalies mask

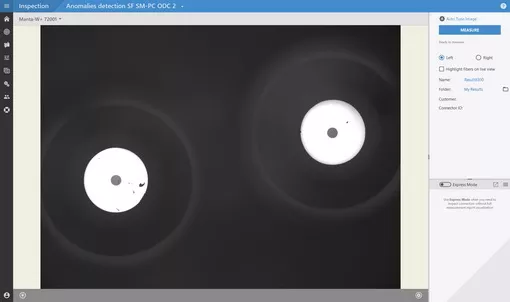

Live View of an ODC®-2 outdoor connector

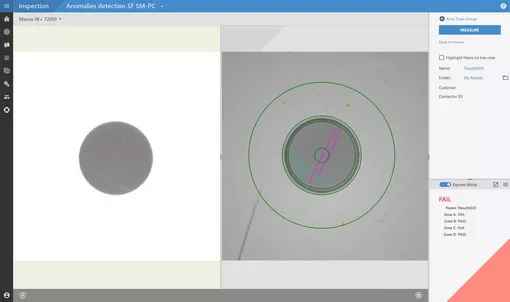

Test result for an SC/PC connector

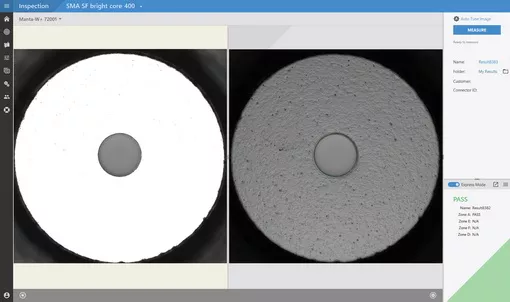

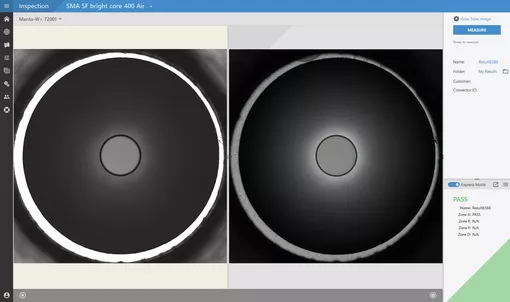

Test result and live view of a high-power AR coated SMA connector with 400 um core

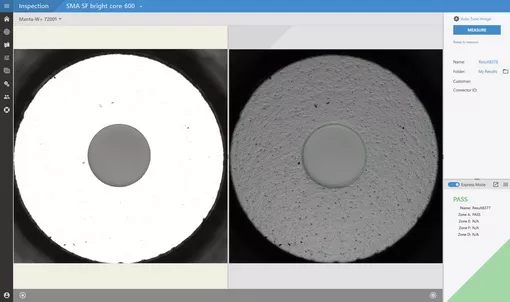

Test result and live view of a high-power AR coated SMA connector with 600 um core

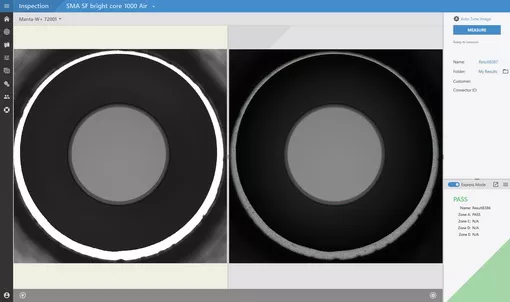

Test result and live view of a high-power SMA connector with 1000 um core
Test result and live view of a high-power SMA connector with 400 um core

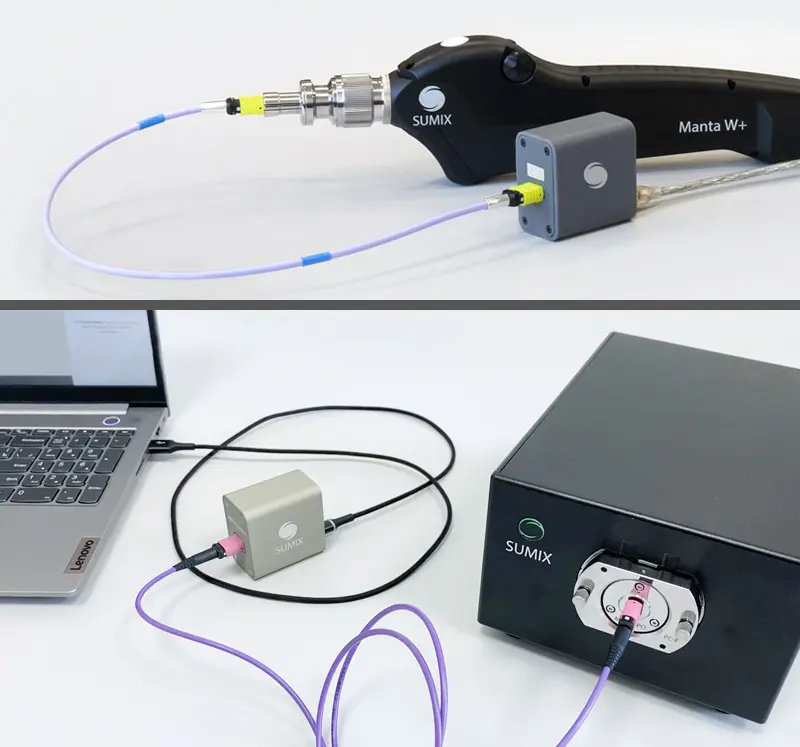

Polarity, Continuity and Fiber Sequence Verification
Complete the end face inspection with polarity validation.
Easily check polarity of MPO, MT and SN-MT® cables with MAX-Quantum and MAX-QM+ interferometers or Manta HM and Manta W+ microscopes by adding compact MPO Verifier and SN-MT Verifier modules to your system.
